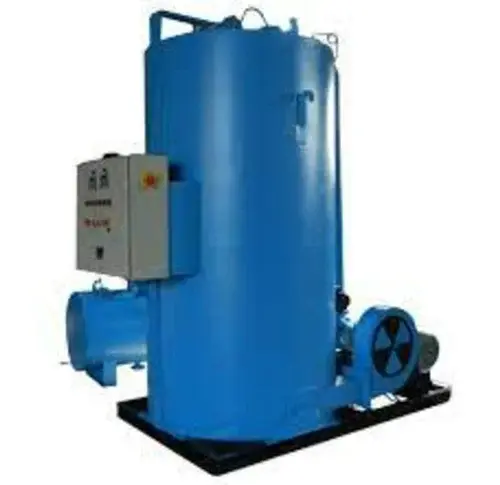

Thermic Boiler
At Dinesh Rubber and Engineering Works, we manufacture high-performance Thermic Fluid Boilers engineered to deliver consistent and efficient heating for industrial processes.
Our boilers are designed to handle high-temperature operations with maximum safety, low maintenance, and energy efficiency, making them ideal for rubber, chemical, textile, and food industries.
Built using precision engineering and quality-tested materials, our thermic boilers ensure uniform heat transfer, optimum fuel utilization, and long operational life — even under continuous working conditions.
Technical Specifications
| Parameter | Specification Range |
|---|---|
| Heating Capacity | 50,000 Kcal/hr to 10,00,000 Kcal/hr |
| Working Temperature | Up to 300°C |
| Fuel Type | Wood / Coal / Diesel / Gas / Thermic Oil |
| Heat Transfer Medium | Thermic Fluid / Heat Transfer Oil |
| Operating Pressure | Up to 15 kg/cm² |
| Coil Type | Horizontal / Vertical / Multi-Pass |
| Efficiency | 80% – 90% (depending on model) |
| Control System | Manual / Semi-Automatic / Fully Automatic |
| Construction | Mild Steel / Stainless Steel (as per requirement) |
Key Features
High Thermal Efficiency: Optimized combustion ensures maximum heat transfer and minimal fuel consumption.
Quick Heat-Up Time: Rapid temperature rise with uniform heating across the process.
Durable Coil Design: Multi-pass coils ensure higher efficiency and longer service life.
Safe Operation: Equipped with temperature and pressure safety interlocks.
Low Maintenance: Easy access for cleaning, inspection, and maintenance.
Fuel Flexibility: Compatible with solid, liquid, or gas fuels.
Our Value Additions
At Dinesh Rubber and Engineering Works, our focus is on building boilers that combine efficiency, reliability, and safety to maximize your process performance.
Our value offerings include:
Customized boiler designs based on production load and process requirements
Energy-efficient combustion systems to reduce operating costs
High-quality insulation for minimal heat loss
Easy integration with rubber presses, vulcanizers, and industrial heaters
After-sales support and maintenance services for trouble-free operation
Applications
Rubber molding and vulcanization plants
Textile and dyeing units
Chemical and pharmaceutical processing
Food and beverage heating processes
Plywood and lamination industries
General industrial heating and drying systems
